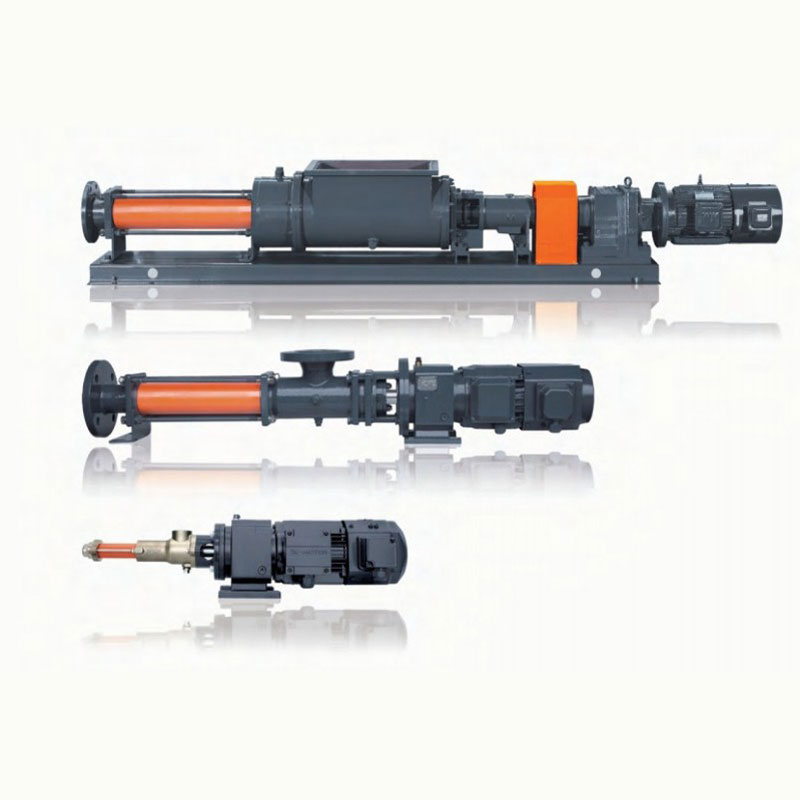

Single screw pump

1.Rotor：Variable material optional based on medium (40Cr, 304, 316L, 2205...). The rotor surface hardness can reach HRC62 for better abrasion resistance and surface finish degree can reach 0.2 after special polishing process.

2.Stator: various rubber material with more than 40 recipes, able to handle all kinds of abrasion, corrosive, high-temperature and other rigorous conditions.

3.Suction casing and discharge joint: various material optional and more flexible installation with suction can flexible installation with suction can coming from top, left and right which are all interchangeable.

4.Universal joint: With external rubber jacket and internal grease lubrication, it is designed as cross axle pin for large torque, more reliability, long service-life and convenient maintenance.

5.Shaft seal: variable sealing options including package seal, single mechanical seal and double mechanical seal. Moreover, package seal design can be exchanged with single mechanical seal design.

6.Bearing seat or supporting bracket: Bearing seat design is used when pump is coupled with reduction box through coupling; Supporting bracket design is used when pump is directly coupled with reduction box.

1. Petrochemical industry: the delivery oil, acid, alkali and salt solution, various viscous pasty and milky chemical grout, oil water separation and waste oil recycling system, polymer delivery.

2. Environment protection: industrial and life sewage treatment, oily water treatment, the delivery of various muddy water with solid particles and short fiber, oil water separation and waste gas project, measuring addition of flocculant and its chemical agents.

3.Exploration and mining: delivery drilling mud; mining water supply and drainage, water supply of mining dust shaker, mortar and concrete painting of mining laneway wall.

4. Medicine and food: delivery medical ointment, syrup, jam, fermentation broth, honey, starch paste, toothpaste, etc.

5.Shipbuilding: bilge cleaning pump, marine incinerator delivery pump, oil water separator matching pump, the delivery of cabin oily water and other medium.

6.Energy industry: the delivery of various fuel oil, coal-water-slurry, resin, additive.

7.Paper-making industry: the delivery of various pulp, short stock, slurry and waste water treatment, chemical measurement, stoichiometry, raw material preparation, coating and coloring process.

8.Construction industry: the delivery of cement mortar, painting, lime milk and other paste liquid.

9.Electrolyte processing: the delivery of various cream, milk, suspension and other medium and which can not be stirred and cut.

10.Mining engineering: the preparation and delivery of coal water slurry, the manufacturing and preparation of titanium white, and other paste liquid.

11.Mechanical engineering: oil water mixture, sludge with metals, metallurgy slurry, waster bunker emptying.
